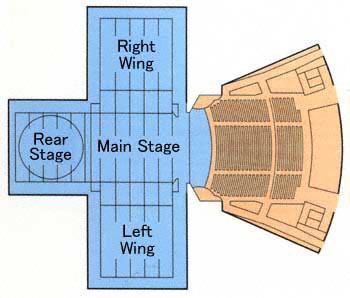

The Opera House's proscenium style stage consists
of four areas: the main stage, a rear stage, and left and right wings. This structure,
standard in European theatre architecture, has been built to suit grand opera.
Within the Opera House, the walls and ceilings of the seating area are covered
in thick panels of wood, to provide the ideal acoustics for the singers. In fact,
the theatre itself acts as a musical instrument. The orchestra pit seats a full
120-person orchestra. The audience seating is in continuous 20-seat rows - the
first use of this arrangement in Japan - to enhance the audience's focus on the
stage.
Lighting
The portal bridge and portal tower have the width and height required to stage
opera. There are four galleries with mainly profile spots as well as other lights.
The four bridge ladders and mulitiple booms are full-scale facilites needed for
ballet production.
Sound
The acoustic envionment has been designed to give the audience a clear, natural,
beautiful sound. The fully digital console provides a warm, rich sound, and the
sophisticated sound equipment is balanced to satisfy the most stringent demands
of staging live vocal performances flexibly and intelligently.
 |
 |
 |
 |
| Capacity |
| Total |
1,814 seats |
| Ground floor |
868 seats
(including 8 wheelchair seats) |
| First balcony |
354 seats |
| Second balcony |
292 seats |
| Third balcony |
300 seats |
| Seat size |
Width 52.5cm
Depth 95cm |
| Reverberation time |
1.4 to 1.6 seconds
(when fully occupied) |
|
| Stage Facilities |
| Four Stages |
| Proscenium opening |
Width 16.4m
Height 12.5m |
| Show portal opening |
Width 14.6m to18.8m |
| Height 1.4m to 15.0m |
| Elevator stages |
18.2m * 3.64m * 5 sets |
| Elevating level range |
+4.5m to -15.7m |
| Heights |
30.5m from the Stage Floor level to the Grid |
| -15.7m from the Stage Floor level to the Understage Floor
level |
| Wing |
| Trucking wagons |
18.2m * 3.64m * 5 sets |
| Rear Stage |
| Sliding stage |
18.2m * 18.2m |
| Revolving stage |
16.4m (diameter) |
| Orchestra pit |
| Floor space |
147m² |
| Sinking level range |
±0m to -2.65m |
| Accomodation |
four-section orchestra of approx. 120 members |
|
|
